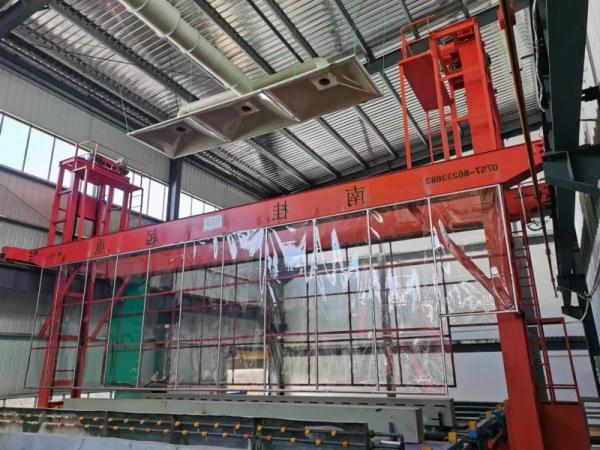

1000 T/month High Efficiency Automatic Aluminium Anodizing Line

一.Production Description

1.Anodizing production line incorporate intelligent maintenance systems, such as predictive and condition-based monitoring, to anticipate equipment failures and optimize maintenance schedules.

2.Anodizing production lines collect and analyze extensive data from their processes, enabling the generation of detailed reports, performance dashboards, and data-driven decision-making.

3.Anodizing production lines work closely with their customers and design teams during the product development stage to ensure optimal part design and material selection for effective and efficient anodizing.

二. Design Condition

三.Process Tank

四. Treatment Process:

1. Degreasing
   (1) 6jig(rack)/ tank x 1 tank=6jig(rack)
   (2) treatment time: 2-5min
2. Alkaline Etching
   (1) 6jig(rack) / tank x 2 tank=12jig(rack)
   (2) treatment time: 3-15min
3. Neutralization
   (1) 6jig(rack) / tank x 1 tank=6jig(rack)
   (2) treatment time: 1-5min
4. Anodizing
   (1) 3 jig(rack)/tank x 5tanks = 15jig(rack)
   (2) Current density: 130A/m²
   (3) Process time: 30min
   (4) Unprocess time: 10min
   (5) Total time 30+10=40min

(6) Average anodizing layer : 0.36*1.3*30*0.77 =10.81um

5. Colour 1

1) Clour process: Mix Salts

2) Quantity:2 jig(rack)/tank x 1tanks = 2jig(rack)

3) Current density: 70A

4) Process time: 2-8min

6. Sealing
1) Sealing menthod: Sealing at Medium or Normal Temperature
2) Quantity:6jig(rack)/tank x 1 tank
3) Process time 10-15min

五. Design Parameter and Setting

1. Anodizing treatment area:
1) Each anodizing process tank need 40min ,where total jig(rack)/year:​

( 2rack x 5 tank x 60min/h) ÷40min x600 hour =9000jig(rack)

2) Design 50m²^/jig(rack) . Where every tank is 100m²
3) Area treatment/year : 9000jig(rack)x 50m² /jig =450000m²

2. Anodizing treatment weight:
Monthly output : 450000m²÷350m²/T*0.9=1157.1T≧1000T

3. Power consumption:
1) Anodising Tank:100m²/tank* 130A/ m²÷0.9=14444A/tank

Power Rectifier : 15000A =5unit
2) Clouring tank: 100㎡/tank×70A/m²÷0.9 = 7777A/tank

Colour Rectifier : 8000A =2 unit

六. Process Chat
